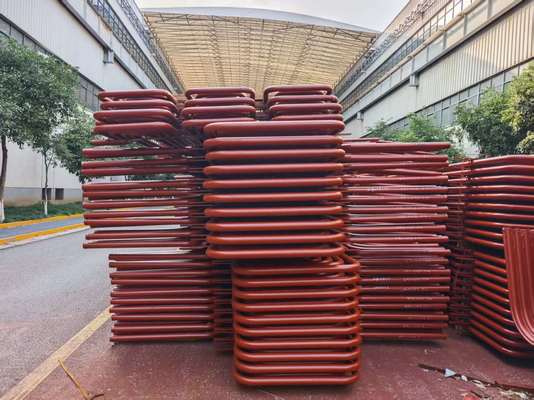

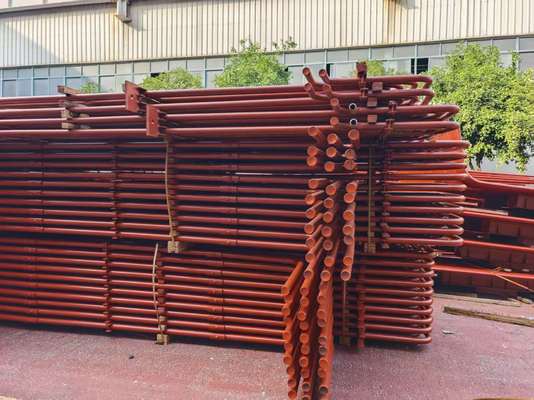

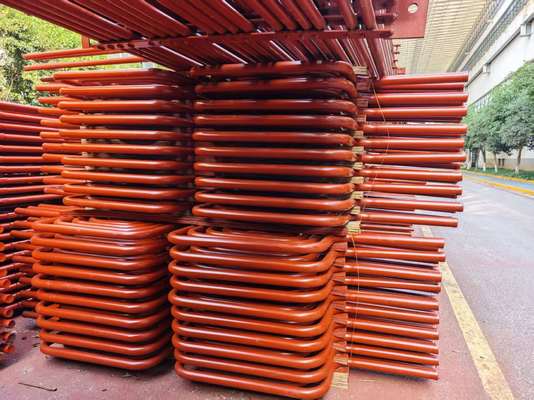

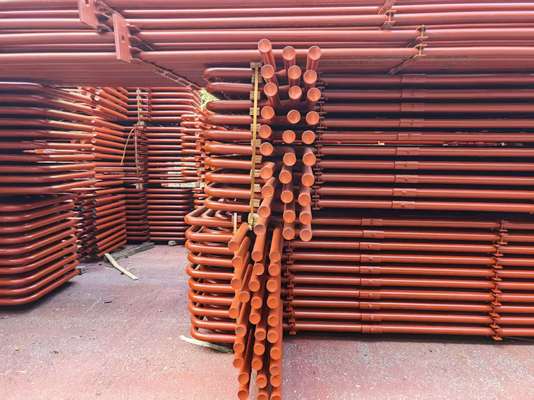

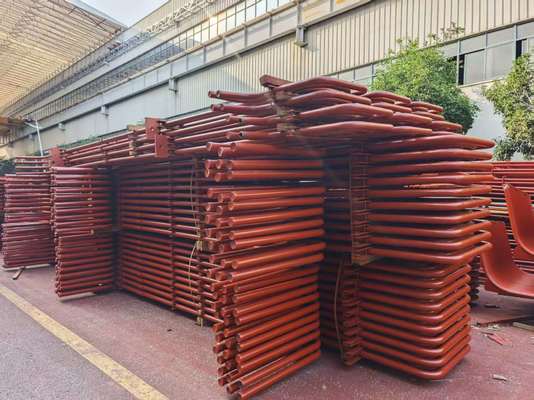

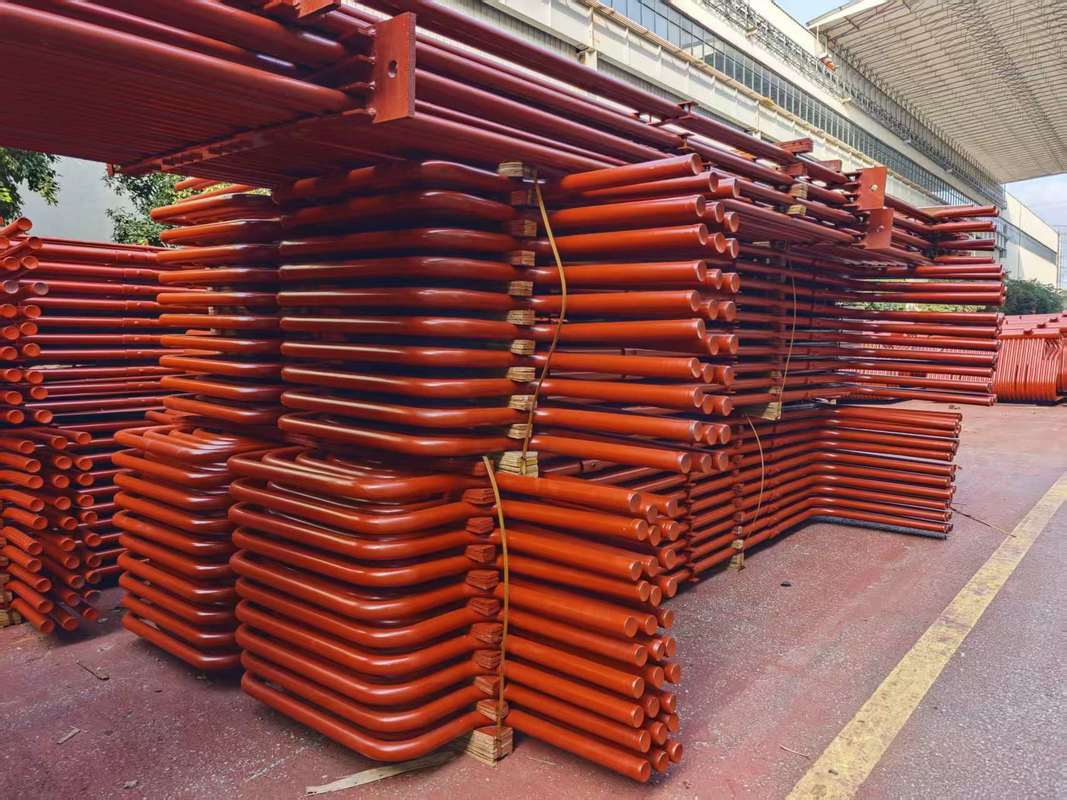

High Efficiency Boiler Reheater Coils Made From ASTM A249 Carbon Steel
Product Description
Serpentine tubes are usually used in boiler reheaters. A reheater is basically a type of steam superheater – it takes the low-pressure steam that’s already done work and heats it up to a specific temperature. The job of a reheater is twofold here: first, it helps boost the thermal efficiency of the power plant’s circulation system even more. Second, it keeps the steam temperature at the last-stage blades of the steam turbine within the allowed range. To put it simply, a reheater is the part of the boiler that turns steam from the turbine back into superheated steam.
More specifically, reheaters have two key functions:
First, they lower the moisture content in the water vapor – and that’s good for protecting the turbine blades.
Second, they can improve both the relative and absolute internal efficiency of the steam turbine.
Features
- Product Name: Superheater And Reheater
- Service Life: Long Service Life
- Design: Customized
- Maintenance: Low Maintenance
- Pressure: High Pressure
- Safety: High Safety
- Key Features:
- Designed for CFB Boiler
- Superheater Coils for high temperature and pressure operation
- Reheater Coils for additional heating of steam
Details
All the raw materials will be firstly made pipeline cutting.
It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.
| Setting Information |
| process | welding |
| structure | horizontal or vertical |
| material | carbon steel, alloy steel |
| tubes | φ32, 38, 42, etc. |
| size | customized |
| brand | HTEG |
| Warranty | 18 months |
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam
2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type | 1. Proper drainage
2. Good structural rigidity. | 1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Applications
The Superheater and Reheater are designed for high-pressure applications and can be customized to fit specific requirements. They are used to increase the temperature of steam that is produced in boilers to improve the efficiency of heat exchange in turbines. The Superheater Coils are made from stainless steel, carbon steel, and alloy steel to ensure a long service life. These materials are also abrasion-resistant, which makes them ideal for use in harsh environments.
The Superheater and Reheater are suitable for power plants that use coal, biomass, or gas as fuel. They also have a long service life, which reduces the need for maintenance. The Superheater and Reheater are especially useful in power plants that require a high-pressure steam system. They provide a reliable and efficient way to increase the temperature of steam, which improves the efficiency of the entire system.
The Superheater and Reheater are used in a variety of occasions and scenarios. They are ideal for power plants that require a high-pressure steam system and are suitable for use with coal, biomass, or gas. These products are also customizable, which makes them suitable for a wide range of applications. The Superheater Coils are made from abrasion-resistant materials, which makes them ideal for use in harsh environments. They are also designed to improve the efficiency of heat exchange in turbines, which makes them an essential component in power generation systems.
Packing and Shipping
Product Packaging:
The Superheater And Reheater product will be carefully packaged to ensure safety during transportation. It will be wrapped in protective material and placed in a sturdy cardboard box with ample padding to prevent any damage during shipping.
Shipping:
The Superheater And Reheater product will be shipped via a reputable courier service to ensure timely and safe delivery. Delivery times may vary depending on the destination, but typically range from 3-7 business days. Customers will receive a tracking number once the product has been shipped so they can monitor its progress and estimated delivery date.
Company Introduction
Hua Dong Energy Technology Started to Produce Serpentine Tube Since 1985,Up to now already supply more than 300,000 tons Steel Serpentine Tube to over 30 countries.
Hua Dong Energy Technology deals with Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 35 years, every year sell more than 50000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001, ISO 14001.
