Product Description

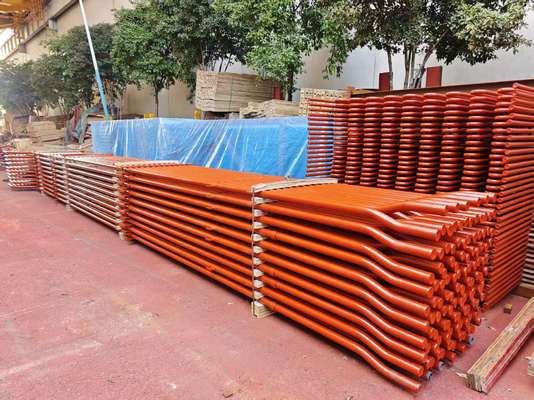

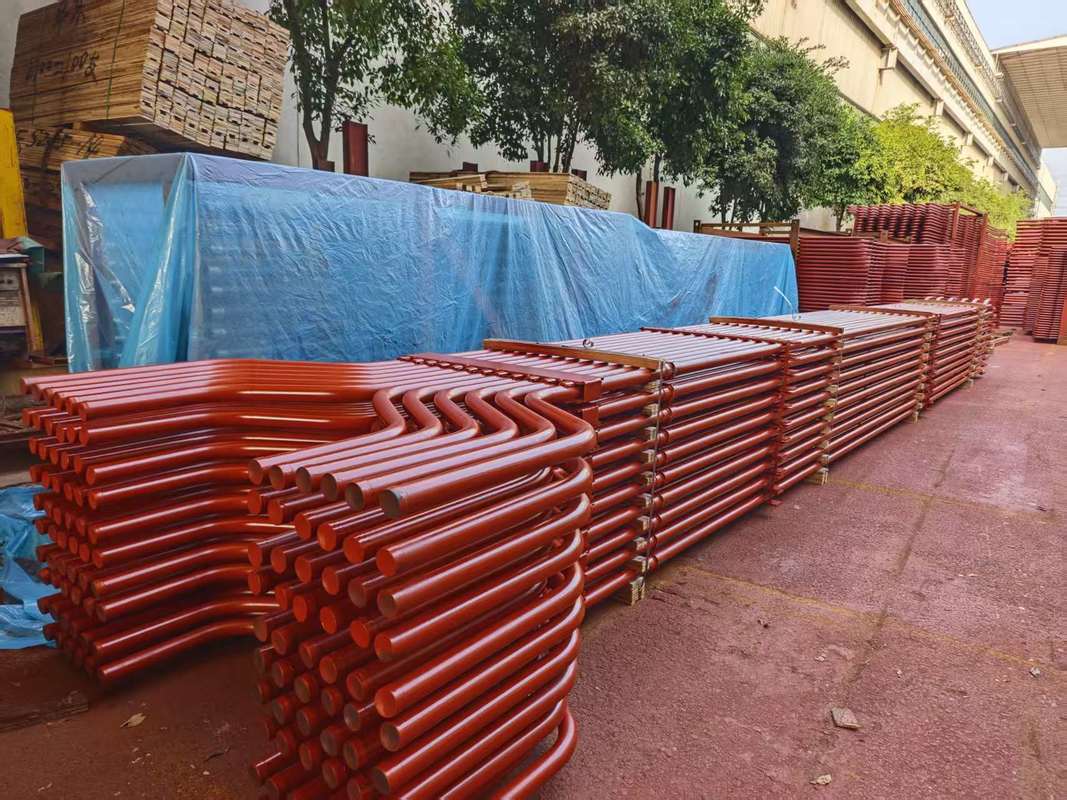

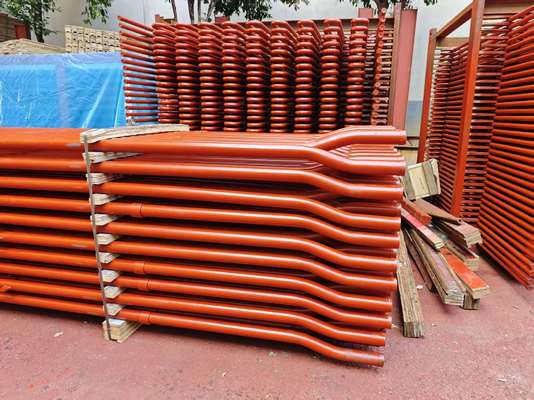

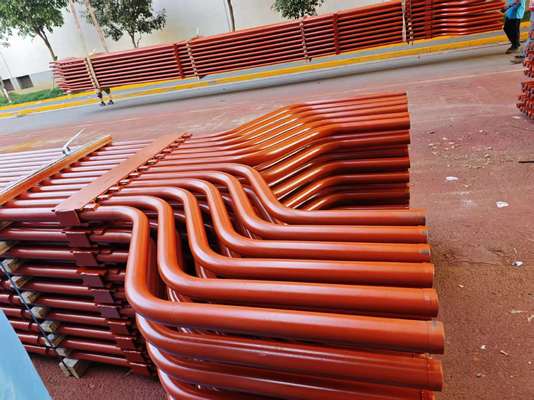

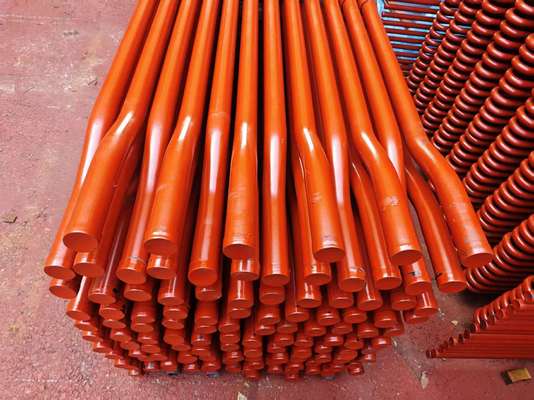

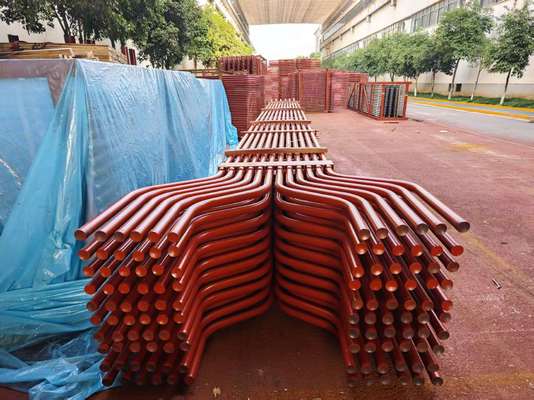

The serpentine tube is welded by a number of small diameter pipes of the same specification and the same material, the length range can be between 20-70m after the extension, after many times of bending, and through some accessories that play the role of connection and fixation, multiple pipe rings are set together to form a serpentine pipe screen, which is located in the upper part of the furnace and in the flue. The components of the serpentine tube structure generally include economizers, superheaters, reheaters, etc.
Features
- Product Name: Superheater And Reheater
- Service Life: Long Service Life
- Design: Customized
- Maintenance: Low Maintenance
- Pressure: High Pressure
- Safety: High Safety
- Key Features:
- Designed for CFB Boiler
- Superheater Coils for high temperature and pressure operation
- Reheater Coils for additional heating of steam
Details
All the raw materials will be firstly made pipeline cutting.
It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.
| Setting Information |
| process | welding |
| structure | horizontal or vertical |
| material | carbon steel, alloy steel |
| tubes | φ32, 38, 42, etc. |
| size | customized |
| brand | HTEG |
| Warranty | 18 months |
Differences
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam
2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type | 1. Proper drainage
2. Good structural rigidity. | 1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Applications
The Superheater and Reheater are designed for high-pressure applications and can be customized to fit specific requirements. They are used to increase the temperature of steam that is produced in boilers to improve the efficiency of heat exchange in turbines. The Superheater Coils are made from stainless steel, carbon steel, and alloy steel to ensure a long service life. These materials are also abrasion-resistant, which makes them ideal for use in harsh environments.
Superheaters and reheaters work great for power plants that run on coal, biomass, or gas. Plus, they last a long time – that means you won’t have to do as much maintenance on them. They’re especially handy for power plants that need a high-pressure steam system, too. They give a reliable, efficient way to bump up steam temperature, and that helps make the whole system work better.
You’ll find superheaters and reheaters used in all sorts of situations. They’re perfect for power plants that require high-pressure steam, and they fit right in with coal, biomass, or gas fuels. On top of that, these products can be customized – so they work for a ton of different uses. The superheater coils are made from materials that stand up to wear and tear, which makes them a good pick for tough, harsh environments. They’re also designed to make heat exchange in turbines more efficient – so they’re a must-have part for power generation systems.
Packing and Shipping
Product Packaging:
The Superheater And Reheater product will be carefully packaged to ensure safety during transportation. It will be wrapped in protective material and placed in a sturdy cardboard box with ample padding to prevent any damage during shipping.
Shipping:
The Superheater And Reheater product will be shipped via a reputable courier service to ensure timely and safe delivery. Delivery times may vary depending on the destination, but typically range from 3-7 business days. Customers will receive a tracking number once the product has been shipped so they can monitor its progress and estimated delivery date.
Company Introduction
Hua Dong Energy Technology Started to Produce Serpentine Tube Since 1985,Up to now already supply more than 300,000 tons Steel Serpentine Tube to over 30 countries.
Hua Dong Energy Technology deals with Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 35 years, every year sell more than 50000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001, ISO 14001.
