Customized Serpentine Fin Tube Economizer Precision-Wound For Peak Transfer
Descriptions
Economizers, or economisers, are mechanical devices intended to reduce energy consumption, or to perform useful function such as preheating a fluid. The term economizer is used for other purposes as well. Boiler, power plant, heating, Refrigeration, ventilating, and air conditioning (HVAC) uses are discussed in this article. In simple terms, an economizer is a heat exchanger.
In boilers, economizers for CFB boilers are heat exchange units that offer low installation costs and good performance. They warm up fluids – usually water – to just below their boiling point, not beyond it normally.
These devices get called "economizers" because they're great at using heat from fluid streams that are hot, but not hot enough to be used directly in the boiler. This way, they capture more usable heat and make the boiler work more efficiently. The high-performance ones are fitted onto boilers to save energy: they use the boiler's exhaust gases to preheat the cold feed water that goes into it.
Our economizers are made using high-frequency welding. Here's how it works: steel strips are automatically welded in a continuous spiral around the outside of smooth tubes, following a specific structure. Then, the remaining parts of the smooth tubes are bent and put together as needed. The result? For the same diameter and length, our economizers have a larger heat transfer area.
|
Product Name
|
Economizer for Boiler
|
|
Structure Type
|

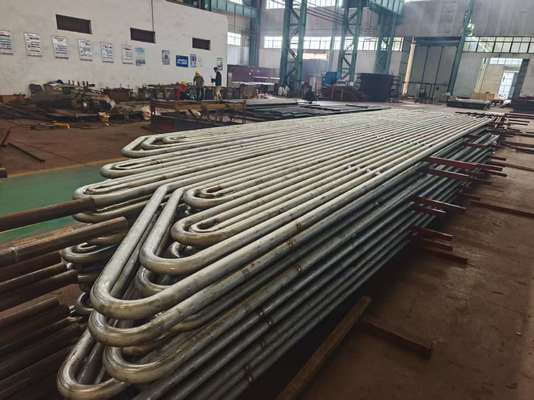

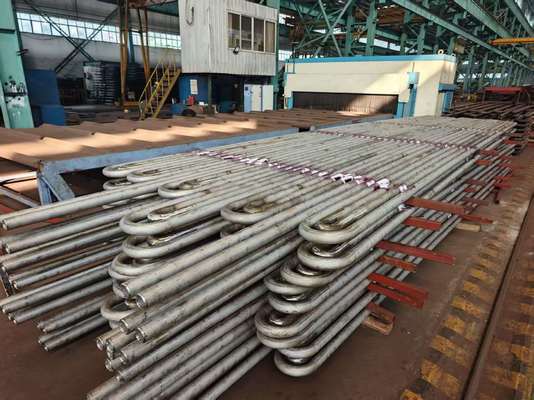

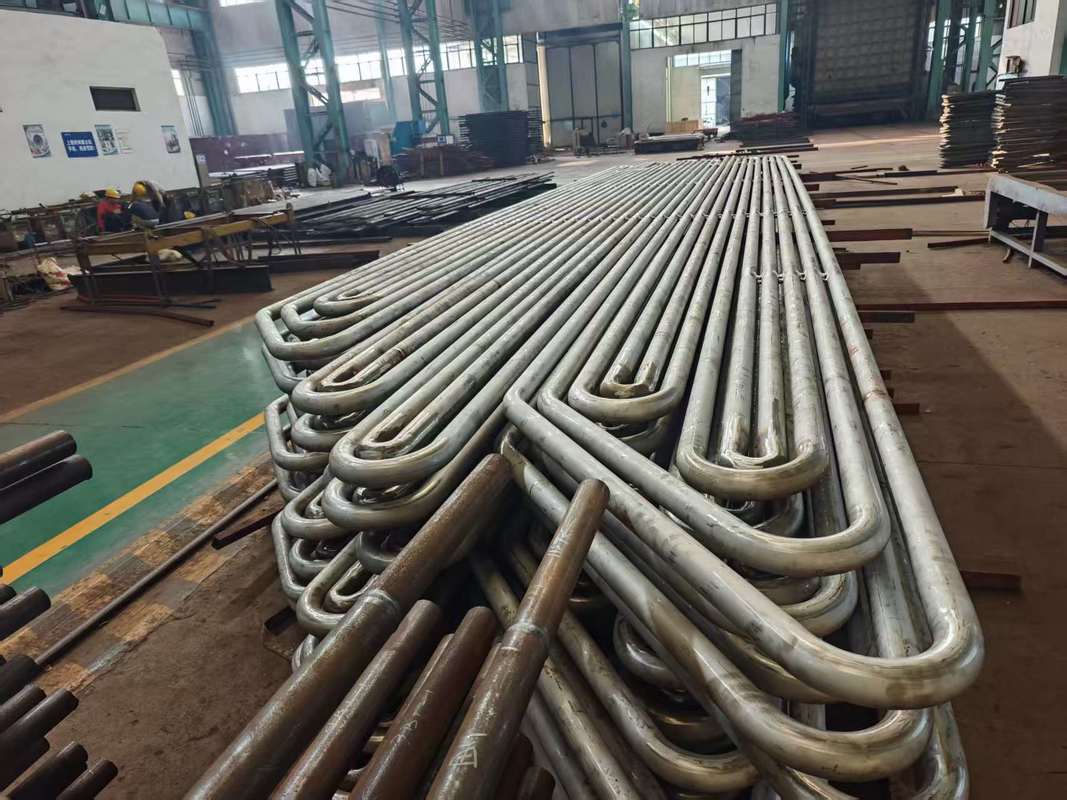

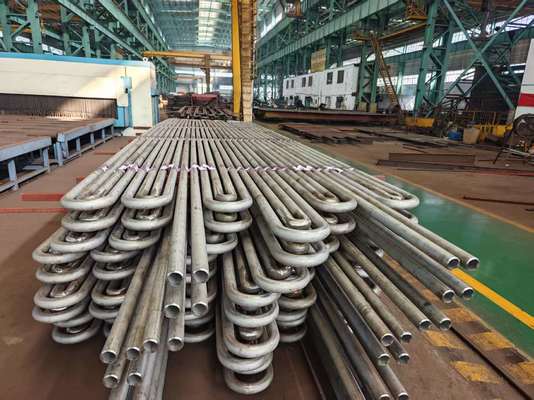

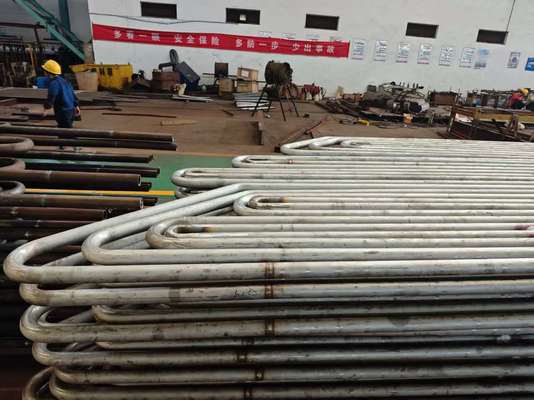

Tube Coil Serpentine Coil
|
|
Tube Material
|
- Carbon Steel : 20#, 20G, A195, A-1
- Corten Class Low Alloy Steel : Corten Steel, ND Steel (09CrCuSb)
- Alloy Steel : 15CrMoG, T11
|
|
Standard
|
China GB, ASME
|
|
Manufacturer Grade
|
China A Grade, ABS Certificated, TUV Certificated
|
|
Tube Type
|
|
|
Tube Specification
|
As per Customer requirements
|
|
Tube Thickness
|
As per Customer requirements
|
|
Working Pressure
|
1.6 MPa ~ 13.2 MPa
|
|
Working Temperature
|
depends on material
|
|
Welding
|
Automatic GTAW (TIG) tube butt welding
|
|
Welding NDT
|
Automatic RT 100%
|
Technical Parameter
| Model |
Name |
Specification |
Quantity |
Working Pressure |
Single Row Water Pressure Test
MPa
|
Integral Test Pressure
MPa
|
| 35T/h CFB/CFBB/CFBC Boiler |
Bare Tube Economizer |
32*3;
20-GB3087
|
124 Rows
(Including high temperature, medium temperature and low low temperature three sections)
|
4.54MPa |
9.1MPa |
5.25MPa |
| 35T/h CFB/CFBB/CFBC Boiler |
Spiral Fin Tube Economizer |
32*3;
20-GB3087
|
50 Rows (Including high temperature and low temperature sections) |
4.54MPa |
9.1MPa |
5.25MPa |
| 35T/h Chain Grate Boiler |
Spiral Fin Tube Economizer |
38*3;
20-GB3087
|
46 Rows Rows (Including high temperature and low temperature) |
4.54MPa |
9.1MPa |
5.25MPa |
| 35T/h Chain Grate Boiler |
Bare Tube Economizer |
38*3;
20-GB3087
|
99 Rows (Including high temperature, medium temperature and low low temperature three sections) |
4.54MPa |
9.1MPa |
5.25MPa |
| 35T/h Chain Grate Boiler |
Bare Tube Economizer |
32*3;
20-GB3088
|
99Rows (Including high temperature, medium temperature and low low temperature three sections) |
4.54MPa |
9.1MPa |
5.25MPa |
| 35T/h CFB/CFBB/CFBC Boiler |
Bare Tube Economizer |
32*3;
20-GB3087
|
93 Rows (Including high temperature, medium temperature and low low temperature three sections) |
4.73MPa |
9.5MPa |
5.93MPa |
| 35T/h CFB/CFBB/CFBC Boiler |
Bare Tube Economizer |
32*3;
20-GB3087
|
108 Rows (Including high temperature, medium temperature and low low temperature three sections) |
4.73MPa |
9.5MPa |
5.93MPa |
| 48T/h CFB/CFBB/CFBC Boiler |
Spiral Fin Tube Economizer |
38*4;
20G-GB5310
|
45 Rows |
10.92MPa |
21.84MPa |
12.64MPa |
| 75T/h CFB/CFBB/CFBC Boiler |
Bare Tube Economizer |
32*3.5;
20G-GB5310
|
156 Rows (Including high temperature, medium temperature and low low temperature three sections) |
6.28MPa |
12.56MPa |
7.27MPa |
| 75T/h CFB/CFBB/CFBC Boiler |
Bare Tube Economizer |
32*3.5;
20G-GB5310
|
114 Rows (Including high temperature, medium temperature and low low temperature three sections) |
4.7MPa |
9.1MPa |
5.25MPa |
| 75T/h CFB/CFBB/CFBC Boiler |
Spiral Fin Tube Economizer |
32*3;
20-GB3087
|
72 Rows (Including high temperature, medium temperature and low low temperature three sections) |
4.54MPa |
9.1MPa |
5.25MPa |
| 75T/h CFB/CFBB/CFBC Boiler |
Spiral Fin Tube Economizer |
32*3;
20G-GB5310
|
72 Rows (Including high temperature and low temperature sections) |
6.28MPa |
12.56MPa |
7.27MPa |
| 75T/h CFB/CFBB/CFBC Boiler |
Bare Tube Economizer |
32*4;
20G-GB5310
|
114 Rows (Including high temperature, medium temperature and low low temperature three sections) |
6.28MPa |
12.56MPa |
7.27MPa |
| Materials |
Carbon Steel Or Alloy Steel |
| Type |
bare tube economizer;finned tube economizer; spiral finned tube economizer;cast iron economizer for power plant/station boiler and industrial/commercial boilers; |
| Brand |
Jinan Yuanda |
| Application |
Boiler heat exchanger parts for Coal Fired Steam Boiler/Coal Fired Hot Water Boiler/CFBB bed boiler |
| Remarks |
Customized order is also accepted. |
Advantages
3.1. Excellent anti-wear performance
3.2. Compact structure
3.3. High thermal efficiency
3.4. Stability
Company profile
Zhangjiagang Hua Dong Energy Technology Co., Ltd. is a high-tech enterprise specialized in producing all kinds of stainless, carbon and alloy steel tubes and pipes, steel plates which are widely used in the field of boiler&heat exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry. And we have passed the attestations including ASME, TUV, Grade A, ISO9001, EN12952, EN10216, SO3834.
The company is the subsidiary of Zhangjiagang Hua Dong Boiler Co., Ltd, which is the most leading boiler and boiler parts manufacturer in China with a history of 35 years and annual turnover of 110 million U.S.A. dollars. Our products have been exported to over 30 countries like United States, Australia, Vietnam, Pakistan, Albania, Cambodia, India, Indonesia, South Korea, the Philippines, Turkey, Saudi Arab, Germany, Russia, Chile, Syria, Thailand, Bangladesh, France, Algeria, Mongolia and Singapore, Cuba, Iraq, Italy, Spain, Japan, Yugoslavia, Sri Lanka, the Czech republic, kyrgyzstan, Canada, Malaysia, the United Kingdom and so on.
